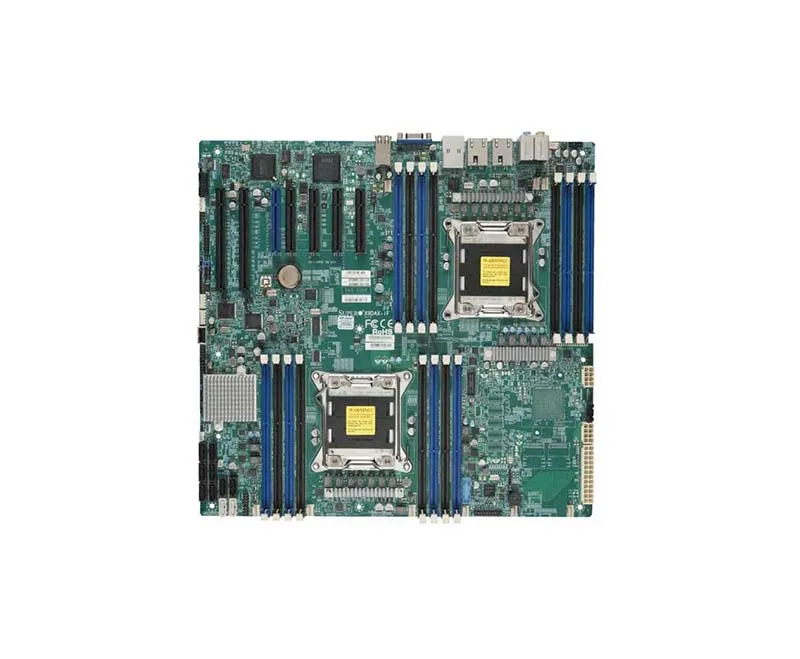

Supermicro X9DAX-iF-HFT Socket LGA2011 Extended ATX Motherboard

* NOTE: Image may not exactly match the product

Supermicro X9DAX-iF-HFT Socket LGA2011 Extended ATX Motherboard

Part Number:

X9DAX-iF-HFT

Manufacturer:

Supermicro

Availability:In Stock
Warranty: 90-day

$262.35

$308.65

You save: $46.30

Upto 2% discount on checkout

Shipping Options:
  • Ships Same Business Day ( If ordered before 2:00pm EST)
  • Free Ground Shipping ( Contiguous US and Canada)
  • Expedite Shipping in US
30 Days Return Warranty
Accept Payment
  • Visa
  • Discover
  • Mastercard
  • Pay with wire transfer
  • AMEX
Process POs for Government Agencies, Enterprises, Data Centers and SMBs

Need Assistance? We are here to help!

  • Call us at (800) 733-1169
    Monday to Friday, 8:00 am - 5:00 pm PST
  • Email: support@memoryclearance.com
  • Live Chat with Technical Sales

Product Description

Supermicro X9DAX-iF-HFT X9DAX-IF Socket LGA2011 Intel C602 Chipset Enhanced Extended ATX System Board (Motherboard) Supports 2x Xeon E5-2600 E5-2600 v2 Series DDR3 16x DIMM
Product Condition:Refurbished

General Information

Package Quantity
1

Technical Information

Ethernet Standard
Gigabit Ethernet
Memory Technology
DDR3 SDRAM
RAM Genre
RDIMM,LRDIMM
Socket Type
Socket R LGA-2011
Chipset Vendor
Intel
Chipset Model
C602
Quantity of Processor Supported
2
Supported Processor
Xeon E
Built-in Processor Vendor
Intel
Built-in Processor Type
Xeon
Built-in Processor Model
E5-2600
Built-in Processor Speed
2.6 GHz
Built-in Processor Core
Dodeca-core (12 Core)
Quantity of Memory Slots
16
Maximum Memory
1 TB
Controller Type
Serial ATA/600
Raid Supported
Yes
Raid Levels
0,1,5,10
Onboard Video
On-board Video Chipset
Graphics Controller Vendor
Matrox
Graphics Controller Model
G200eW
Audio Channels
7.1

Interfaces/Ports

Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+)
3
VGA Port
Yes
Quantity of Expansion Slots
6
Quantity of USB Ports
11
Ethernet Port (RJ-45)
Yes
Quantity of PCI Express Slots
6
Quantity of PCI Express x8 Slots
4
Quantity of PCI Express x16 Slots
2
S/PDIF Port
Yes
Quantity of SATA Interfaces
10
Quantity of Onboard USB Ports
11
Quantity of Onboard USB 3.0 Ports
4
Onboard S/PDIF Header
Yes
Quantity of USB 2.0 Ports
7

Physical Characteristics

Height
13.68 Inches
Width
13 Inches
Form Factor
Enhanced Extended ATX

Miscellaneous

Compatibility
  • SYS-6027AX-TRF-HFT1
  • SYS-6027AX-TRF-HFT2
  • SYS-6027AX-TRF-HFT3B
Compliance Standards
RoHS
Assembly Required
Yes
Eco Friendly
Yes
